A tilt-up conversion removes a one-piece garage door and its pivot hardware and replaces it with a sectional door on standard track, springs and an opener. Because tilt-up openings were framed for a different system, the jambs and header usually need inspection and preparation first. The result opens straight up, needs no driveway clearance and can run on a modern battery-backup opener.
What the visit covers
- Opening and framing inspected for the sectional system
- Pivot springs unloaded and removed safely
- Jambs and header trued, repaired or reinforced
- New sectional door, track and torsion springs installed
- Opener with battery backup installed or paired
- Full balance and safety testing
Tilt-up to sectional swaps

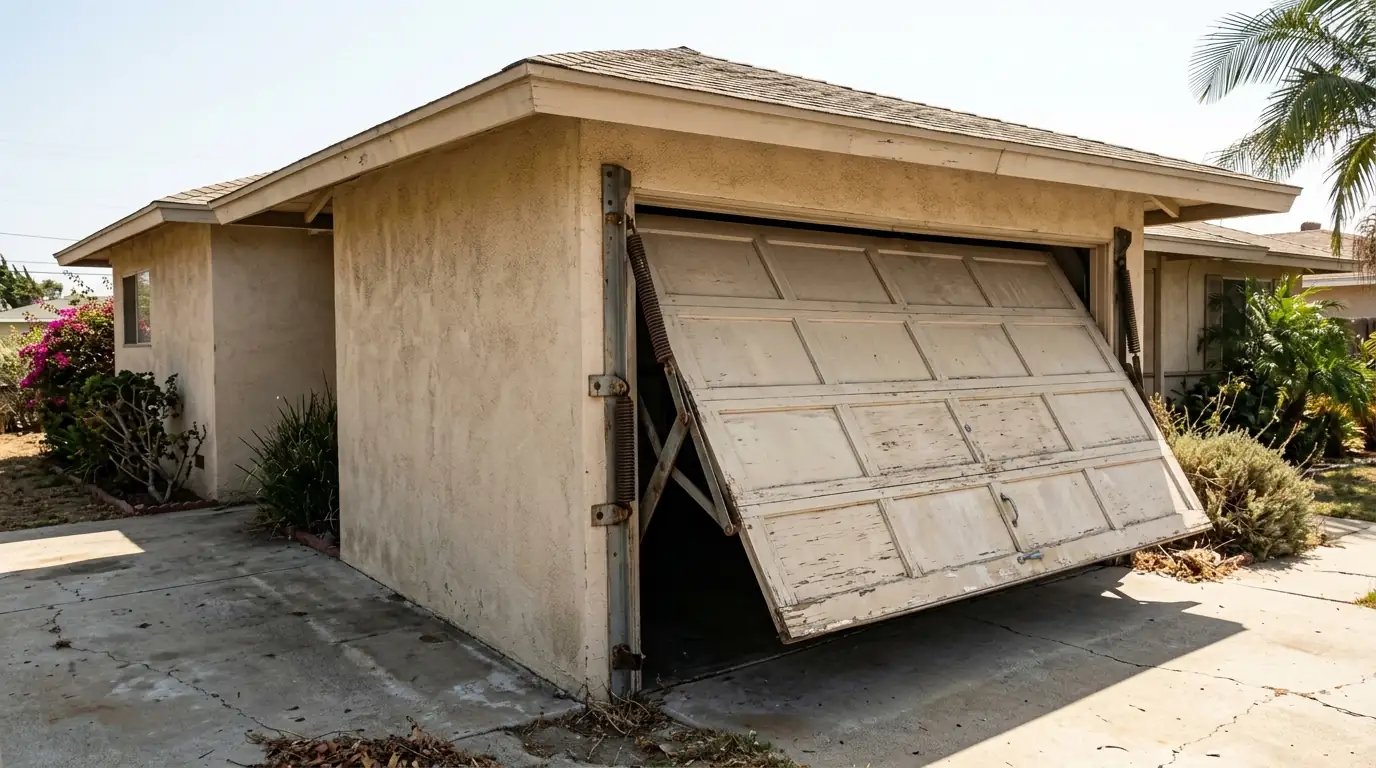

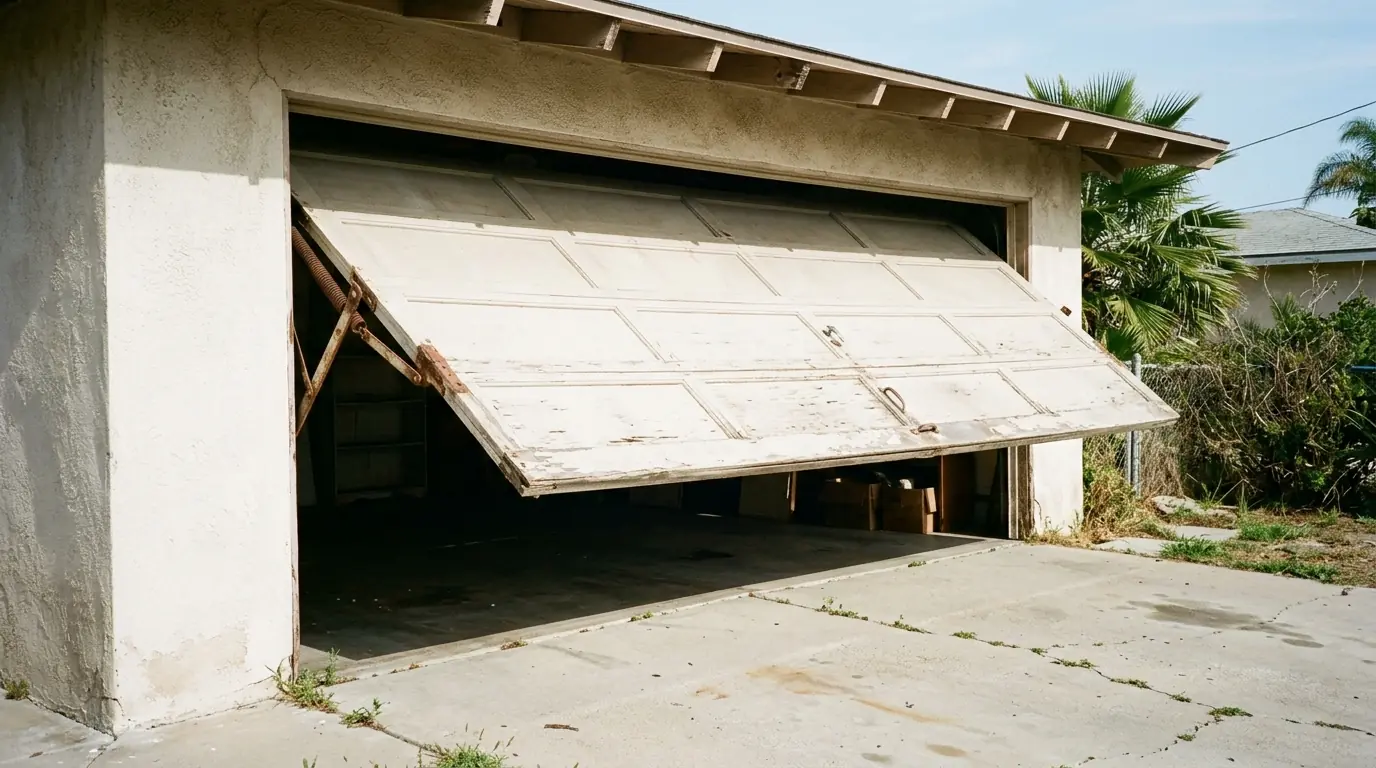

One-piece doors pivot out and up as a single slab, so the car has to be clear of the swing and the door juts over the driveway while it opens. A sectional door rolls up in panels along its track, with no swing and far better weather sealing. Most owners notice the difference the first time they pull close to the door and press the button.
Jamb and header prep
Tilt-up openings were often framed around the old hardware, and decades of pivot-spring stress can leave jambs split or out of plumb. We check and true the framing, add solid backing where the new track mounts, and confirm the header can carry the springs. Good prep is what makes the new door run smoothly for years.
Spring hardware removal

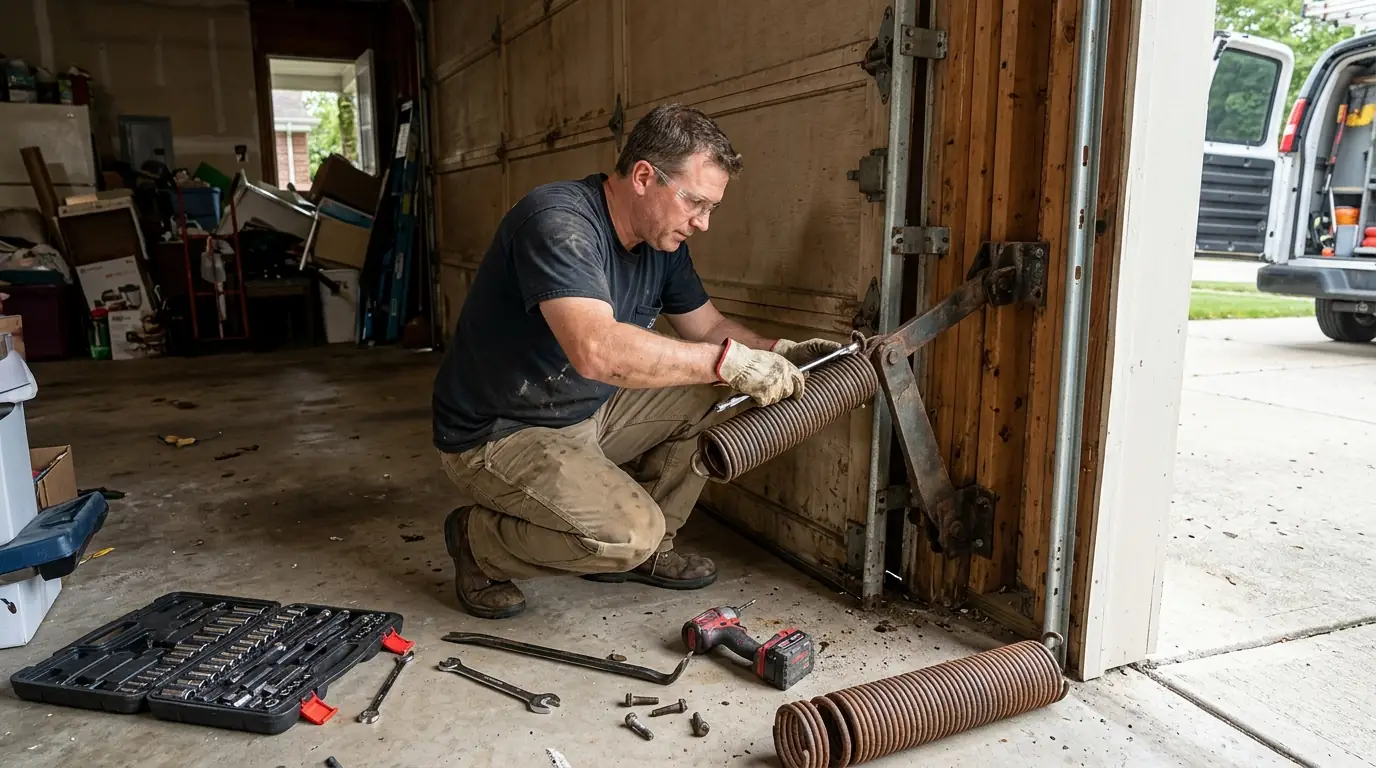

Tilt-up doors are usually counterbalanced by large springs on pivot brackets at each side, and removing them while tensioned is genuinely dangerous. We release the tension under control and take out the old door, springs and brackets completely, so nothing stored under load stays in the garage.
On the job
A big share of the city still has tilt-ups
More than 27 percent of San Diego city housing was built between 1940 and 1969, the era when one-piece tilt-up doors were the default, and many of those doors still swing out over driveways today. Owners usually call when a pivot spring fails or the slab starts dragging, and the conversion often pairs with California's battery-backup opener requirement, because the new sectional door can run on a modern compliant opener for the first time.
What a tilt-up conversion costs
A conversion is priced like a new door installation plus the prep work. HomeAdvisor places replacement doors between $400 and $10,000 with about $1,500 typical, and Angi puts installation labor at $200 to $500 on standard jobs; framing repairs and a new opener add to that. The variables:
Questions callers ask about this job
Not automatically, but its pivot springs store significant tension and the hardware is decades old on most homes. If a spring or bracket has failed, keep the door down and people clear, and call.
Sectional doors need some headroom above the opening for track and springs. We measure before quoting, and low-headroom track kits handle many tight garages.
Often, but older openings are sometimes nonstandard. We measure precisely and order the right size, or recommend a custom door when needed.
Yes. Carriage-style and plank-pattern sectional doors can echo the original look without the swing-out operation.
Usually. Tilt-up openers are a different setup, and a new sectional door in California should be paired with a battery-backup opener. We quote both together.
